Semantic Bridge Validation

• 2026-09-14
• Greg Baldini

Applies to:

• ❌ Tabular Editor 2
• Tabular Editor 3 (Available since 3.25.0)
  ❌ Desktop
  ❌ Business
  ✔ Enterprise

There is a validation framework built into the Semantic Bridge to allow users to validate and define rules to check a Metric View before importing it to Tabular. This diagnostic reporting is shared at every stage of the translation pipeline, from first deserializing the Metric View, through to errors in translation to DAX and Tabular.

Note

The Semantic Bridge is currently in public preview, so interfaces may change as the feature matures. For now, the only interface to validation is through C# scripts.

Validation process

There are several phases of validation

1. upon deserializing some YAML, to check that it represents a valid Metric View
2. acting on the loaded Metric View
3. upon translating the Metric View to Tabular

The first and third are automatic and internal to the Semantic Bridge, but the second is where users can provide their own validation rules.

Validation is a process of evaluating each of a set of validation rules against all objects in the Metric View. A validation rule is defined to apply to exactly one type of Metric View object, e.g. a Join or Measure. After a validation is complete, all diagnostics from rule violations are returned to the user for further action.

Built-in diagnostic codes

The first and third phases raise their own diagnostics, with codes the Semantic Bridge defines. They reach you the same way your own rules' diagnostics do: each carries a Severity, a Code, a Path, a Context and a Message.

Severity is one of Error, Warning or Information. An Error stops the operation. A Warning means the Bridge carried on having made a decision for you, and is telling you what it decided.

Reading the YAML

Code	Severity	Raised when
METRIC_VIEW_FIELDS_AND_DIMENSIONS_BOTH_PRESENT	Error	The view declares both fields: and dimensions: at the top level. They are aliases for one another; use one
METRIC_VIEW_DUPLICATE_NAME	Error	Two objects in the same collection claim the same name. Matching is case-insensitive
METRIC_VIEW_DEPRECATED_DIMENSIONS_KEYWORD	Warning	A view at YAML spec 1.1 or later uses dimensions:. fields: is the canonical form; both keep working. Raised once per file
METRIC_VIEW_FIELDS_KEYWORD_PRE_V11	Warning	A view below spec 1.1 uses fields:. dimensions: is canonical at that version; both are accepted
MISSING_VERSION	Warning	The YAML has no version property. A default is assumed
UNKNOWN_JOIN_CARDINALITY	Warning	A join declares a cardinality other than many_to_one or one_to_many. many_to_one is assumed
MISSING_FORMAT_TYPE, UNKNOWN_FORMAT_TYPE	Warning	A format has no type, or one the Bridge does not recognize. The format is ignored
MISSING_DATE_FORMAT, UNKNOWN_DATE_FORMAT	Warning	Defaults to year_month_day
MISSING_TIME_FORMAT, UNKNOWN_TIME_FORMAT	Warning	Defaults to locale_hour_minute_second
MISSING_DECIMAL_TYPE, UNKNOWN_DECIMAL_TYPE	Warning	Defaults to all
MISSING_SEMIADDITIVE, UNKNOWN_SEMIADDITIVE	Warning	Defaults to Last
MISSING_MATERIALIZATION_MODE, UNKNOWN_MATERIALIZATION_MODE	Warning	Defaults to relaxed
MISSING_MATERIALIZED_VIEW_TYPE, UNKNOWN_MATERIALIZED_VIEW_TYPE	Warning	Defaults to unaggregated
VERSION_MISMATCH	Warning	The declared version does not match what was found

Mapping the Metric View

Every code in this group is a Warning except where noted. The object is still created, but something about it did not survive intact.

Code	Raised when
JOIN_ON_EMPTY	A join has no on clause. The dimension and its source are created, but no foreign-key / primary-key pair is wired
JOIN_ON_UNRECOGNIZED	A join's on clause is not a recognized equality between an upstream column and a dimension column. Again, no key pair
JOIN_ON_NO_SOURCE_SIDE	A join's on clause pairs no upstream column. Again, no key pair
ONE_TO_MANY_JOIN_UNTRANSLATED	A join declares cardinality: one_to_many, which the translator does not model. The relationship is skipped, so measures referencing its columns may be wrong or empty; review these by hand
DUPLICATE_JOIN_DIMENSION	A join would create a dimension whose name collides with an existing one. The duplicate is skipped. Join names must be unique across the view
UNRESOLVED_DIMENSION_REFERENCE	A reference targets a dimension that is not declared as a join. A placeholder derived field is emitted, preserving the original reference
STRUCT_REFERENCE_UNSUPPORTED	A dimension references a whole-row or nested struct value, which has no Tabular column equivalent. The column is emitted but will not resolve at refresh
FORMAT_TRANSLATION_LOSSY	A Databricks format spec cannot be expressed exactly as a Tabular format string
FIELD_COLLISION_RENAME	Information. A generated field name collided with a user-declared dimension, so the field was renamed. It stays in the model and still backs any relationship that referenced it
MEASURE_REF_OUT_OF_CONTEXT	A MEASURE(...) reference appears in an expression that is not a measure
UNRESOLVED_MEASURE_REFERENCE	A MEASURE(...) reference names no declared measure. Falls back to the verbatim source
FIELD_CONFIGURATION_UNEXPECTED	A field had a configuration the analyzer could not classify, and was imported as a derived fact field for safety. Verify the result

Expression diagnostics, by object kind

Expression problems report under their own code per object kind, so you can tell at a glance which kind of object failed:

Kind	Could not be translated	Could not be parsed
Field	FIELD_EXPRESSION_UNTRANSLATED	FIELD_EXPRESSION_PARSE_ERROR
Measure	MEASURE_EXPRESSION_UNTRANSLATED	MEASURE_EXPRESSION_PARSE_ERROR
Join	JOIN_EXPRESSION_UNTRANSLATED	JOIN_EXPRESSION_PARSE_ERROR

An untranslated expression was understood but uses a construct with no DAX equivalent; the original is preserved as a comment. A parse error means the expression could not be read at all, and the diagnostic's Context carries the parser's own message.

Emitting to Tabular

Code	Raised when
REFERENCE_FIELD_INVALID_SOURCE	A reference field points at a field id that is missing or is not a source field. A placeholder column is emitted
DERIVED_FIELD_UNTRANSLATED	A derived field's expression could not be translated to DAX. The original is preserved as a comment
DERIVED_FIELD_NO_EXPRESSION	A derived field has no expression
MEASURE_UNTRANSLATED	A measure's expression could not be translated. The original is preserved as a comment
CALCULATED_MEASURE_NO_EXPRESSION	A calculated measure has no source expression. A placeholder body is emitted
MEASURE_UNRESOLVED_AT_EMIT	A measure references a measure that has not been emitted. Falls back to the verbatim source
TABLE_UNRESOLVED_AT_EMIT	A measure references a table that has not been emitted. Falls back to the verbatim source
COLUMN_UNRESOLVED_AT_EMIT	A measure references a field that has not been emitted as a column. Falls back to the verbatim source
MEASURE_WINDOW_UNSUPPORTED	A measure uses an unsupported window specification. It is left inert, with the original definition preserved as a comment

Anatomy of a validation rule

Validation rules are all instances of IMetricViewValidationRule. Rather than dig into that interface, it is easier to understand and work with validation rules with the helper methods:

• MakeValidationRuleForField
• MakeValidationRuleForJoin
• MakeValidationRuleForMeasure
• MakeValidationRuleForView
• MakeValidationRule

The first four are all special purpose to make a rule for the object type in their name. They offer a simplified interface where you provide:

• name: a short, unique name to identify the rule
• category: useful for grouping similar rules together, but ultimately completely optional
• message: the message that will be shown in the diagnostic message when this rule is violated
• isInvalid: a function that will take the Metric View object as an argument, and will return true if that object is invalid

The name and category are intended to make it easier to deal with collections of rules, as you will do in C# scripts that utilize custom rules.

Each of these helpers also has an overload with a final minVersion argument. This argument would take a version string, such as "0.1" or "1.1". Rules with minVersion set are only evaluated for Metric Views at or above that version.

This is easier to understand with an example:

// create a rule to check for underscores in field names
var myRule = SemanticBridge.MetricView.MakeValidationRuleForField(
	"no_underscores",
	"naming",
	"Do not include underscores in field names. Use user-friendly names with spaces.",
	(field) => field.Name.Contains('_')
	);

This makes a rule that will apply to all Metric View Fields. The rule is named (ironically) "no_underscores". It has a category of "naming", to indicate that it has to do with how we name things. The message you will see when the rule is violated is, "Do not include underscores in field names. Use user-friendly names with spaces." The last argument defines a function that will be called for each Metric View field in the model; its body is a boolean expression that returns true for a Metric View field with an underscore in its Name property.

Here's a full script that defines a Metric View inline, and then deserializes and validates it, showing how this rule is used.

// create a new simple Metric View
SemanticBridge.MetricView.Deserialize("""
    version: 1.1
    source: database.schema.table
    fields:
      - name: first_field
        expr: source.first_field
      - name: another field with no underscores
        expr: source.another_field_with_no_underscores
    """);

// create a new validation rule
var myRule = SemanticBridge.MetricView.MakeValidationRuleForField(
    "no_underscores",
    "naming",
    "Do not include underscores in field names. Use user-friendly names with spaces.",
    (field) => field.Name.Contains('_')
    );

// run validation with the rule defined above and output the diagnostic messages
var sb = new System.Text.StringBuilder();
foreach (var d in SemanticBridge.MetricView.Validate([myRule]))
{
    sb.AppendLine($"[{d.Severity}] {d.Code} {d.Path}");
    sb.AppendLine($"    {d.Context} {d.Message}");
    sb.AppendLine();
}
Output(sb.ToString());

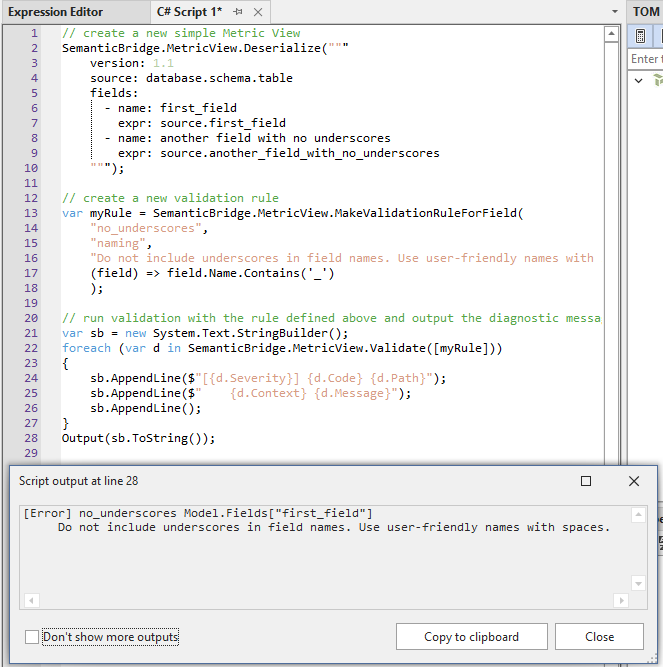

Output

[Error] no_underscores Model.Fields["first_field"]
     Do not include underscores in field names. Use user-friendly names with spaces.

You can see that one of the Metric View fields has an underscore in its name. When you run the script, you can see one diagnostic message after validating with the rule we defined. You can see the details that are provided in the diagnostic message:

• Code: the name you assign to your rule
• Context: not set by these helpers
• Message: the message you defined in the rule
• Path: a representation of where you find that object in the Metric View
• Severity: set to Error by default with these helpers

If you want more control over the diagnostic message and more flexibility in the function for your validation, you can use MakeValidationRule mentioned above to make a contextual validation rule.

// necessary to use the Metric View object model
// aliasing to avoid conflicts with same-named TOM objects
using MetricView = TabularEditor.SemanticBridge.Platforms.Databricks.MetricView;

// create a new simple Metric View
SemanticBridge.MetricView.Deserialize("""
    version: 1.1
    source: database.schema.table
    fields:
      - name: customer
        expr: source.customer_id
      - name: repeat_customer
        expr: source.customer_id
    """);

// create a new validation rule
var myRule = SemanticBridge.MetricView.MakeValidationRule<MetricView.Field>(
    "no_aliased_fields",
    "modeling",
    (field, context) =>
    {
        var original = context.FieldNames.FirstOrDefault(seen => field.View.Fields[seen].Expr == field.Expr);
        return original == null
            ? []
            : [context.MakeError(
                "field_alias",
                $"Field '{field.Name}' reuses source expression '{field.Expr}', already used by field '{original}'.",
                field)];
    });

// run validation with the rule defined above and output the diagnostic messages
var sb = new System.Text.StringBuilder();
foreach (var d in SemanticBridge.MetricView.Validate([myRule]))
{
    sb.AppendLine($"[{d.Severity}] {d.Code} {d.Path}");
    sb.AppendLine($"    {d.Context} {d.Message}");
    sb.AppendLine();
}
Output(sb.ToString());

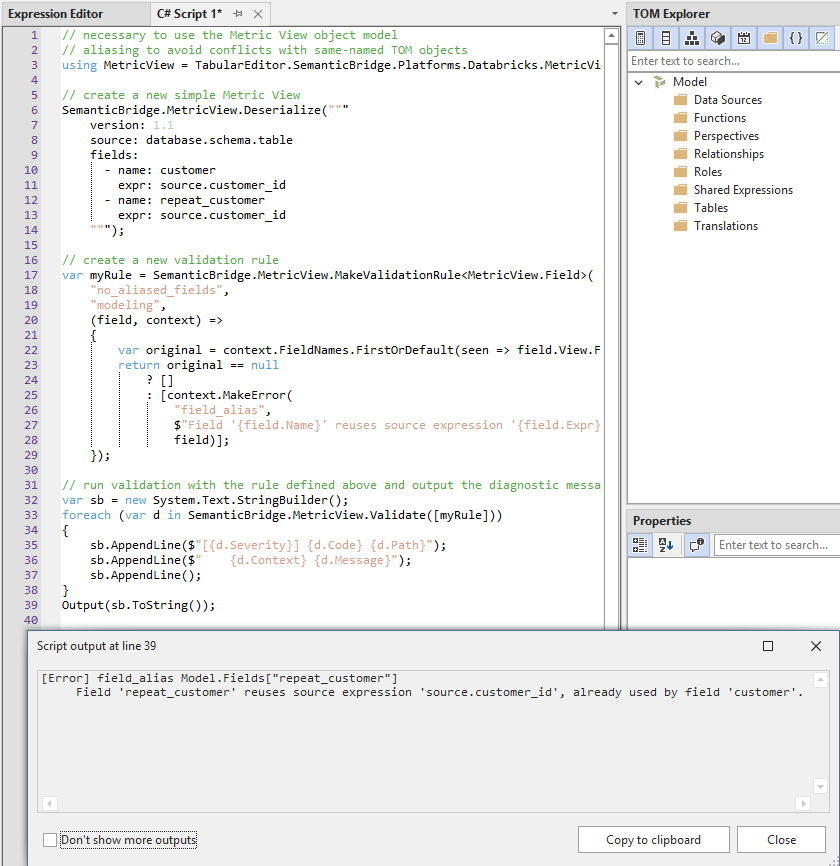

Output

[Error] field_alias Model.Fields["repeat_customer"]
     Field 'repeat_customer' reuses source expression 'source.customer_id', already used by field 'customer'.

This helper method requires you to pass the object type as a type parameter, and the validation function now is a two-parameter function, defined with the signature (metricViewObject, context). The first parameter is the Metric View object that the rule is evaluated for. The second parameter is an IReadOnlyValidationContext. This context object holds collections with the names of already-checked objects; this means we can use it to inspect only objects already validated. The context object also has helper methods to make a new diagnostic message; the benefit here is that your message doesn't have to be a hard-coded string, but can include properties of the object you are checking. We use MakeError, and the context object also includes a MakeWarning. You can see in this example that we include in the message both the offending field and the field it aliases.

Validation rule best practices

It is a good idea to make many simple rules, rather than fewer, more complex rules. The validation process is very light-weight, so there are not performance concerns from a proliferation of rules. For example, if you want to make sure that Metric View field names are not camelCased, not kebab-cased and not snake_cased, it is better to make three separate rules, rather than trying to check for each of those conditions in a single rule. This allows each rule to be simple, and for the messages to be very specific, and therefore more easily actionable.

In general, once you have a rule that catches a specific issue, it is better to leave that alone, rather than editing it. If you find that the rule is missing some condition you'd like to catch, just add a new, small, simple rule to catch that new condition.

You can save many different rules in a C# script for re-use with different Metric Views. Because a loaded Metric View is accessible in multiple scripts you can save C# scripts that only define rules and then call SemanticBridge.MetricView.Validate, and re-use those validation scripts easily. See the image below, where the script on the left, "deserialize-mv.csx" has already been run, to load a Metric View to Tabular Editor. Then, the second script, on the right, "run-rules.csx", is run second to validate. This second script could be one that you keep around for all of your Metric Views.

The scripts are copied below for convenience, but are just rearrangements of scripts we saw above.

"deserialize-mv.csx"

// create a new simple Metric View
SemanticBridge.MetricView.Deserialize("""
    version: 1.1
    source: database.schema.table
    fields:
      - name: customer
        expr: source.customer_id
      - name: repeat_customer
        expr: source.customer_id
    """);

"run-rules.csx"

// necessary to use the Metric View object model
// aliasing to avoid conflicts with same-named TOM objects
using MetricView = TabularEditor.SemanticBridge.Platforms.Databricks.MetricView;

//create a simple validation rule
var simpleRule = SemanticBridge.MetricView.MakeValidationRuleForField(
    "no_underscores",
    "naming",
    "Do not include underscores in field names. Use user-friendly names with spaces.",
    (field) => field.Name.Contains('_')
    );

// create a contextual validation rule
var contextualRule = SemanticBridge.MetricView.MakeValidationRule<MetricView.Field>(
    "no_aliased_fields",
    "modeling",
    (field, context) =>
    {
        var original = context.FieldNames.FirstOrDefault(seen => field.View.Fields[seen].Expr == field.Expr);
        return original == null
            ? []
            : [context.MakeError(
                "field_alias",
                $"Field '{field.Name}' reuses source expression '{field.Expr}', already used by field '{original}'.",
                field)];
    });

// run validation with the rules defined above and output the diagnostic messages
var sb = new System.Text.StringBuilder();
foreach (var d in SemanticBridge.MetricView.Validate([simpleRule, contextualRule]))
{
    sb.AppendLine($"[{d.Severity}] {d.Code} {d.Path}");
    sb.AppendLine($"    {d.Context} {d.Message}");
    sb.AppendLine();
}
Output(sb.ToString());

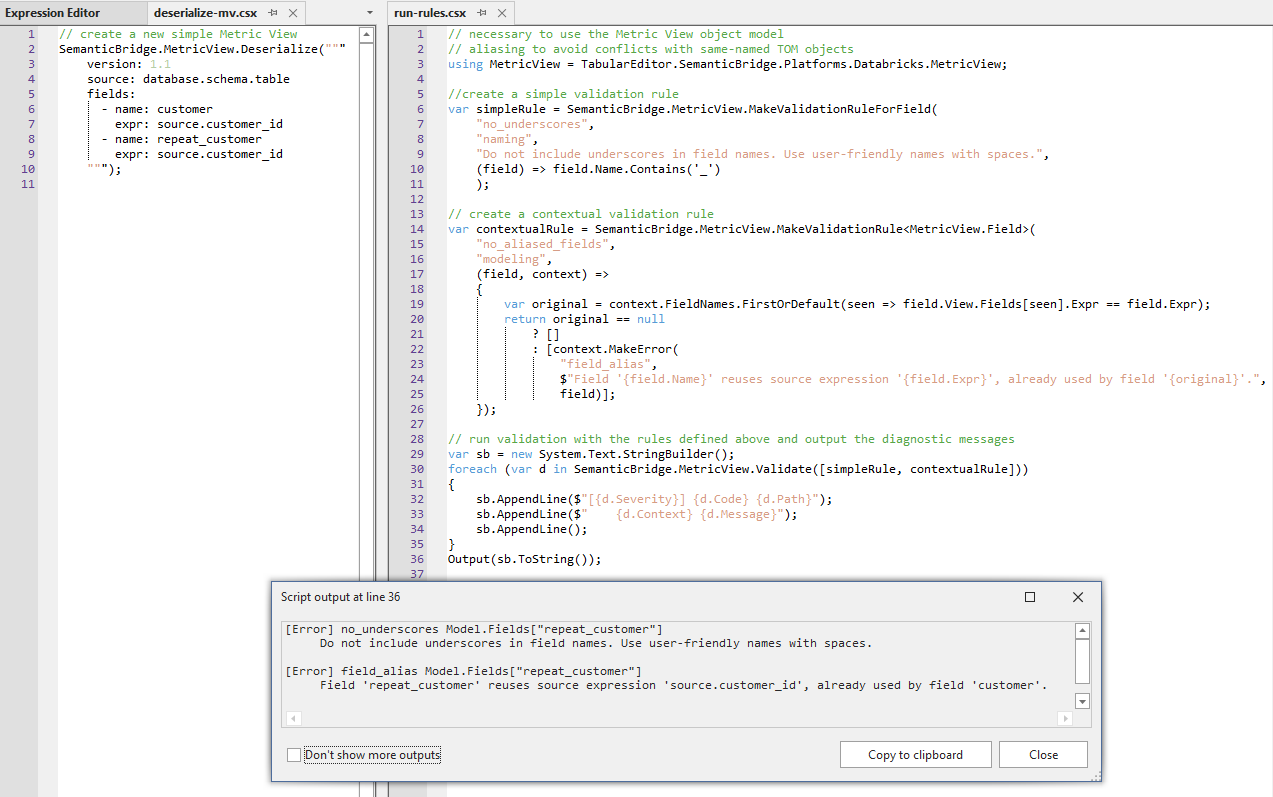

Output

[Error] no_underscores Model.Fields["repeat_customer"]
     Do not include underscores in field names. Use user-friendly names with spaces.

[Error] field_alias Model.Fields["repeat_customer"]
     Field 'repeat_customer' reuses source expression 'source.customer_id', already used by field 'customer'.
